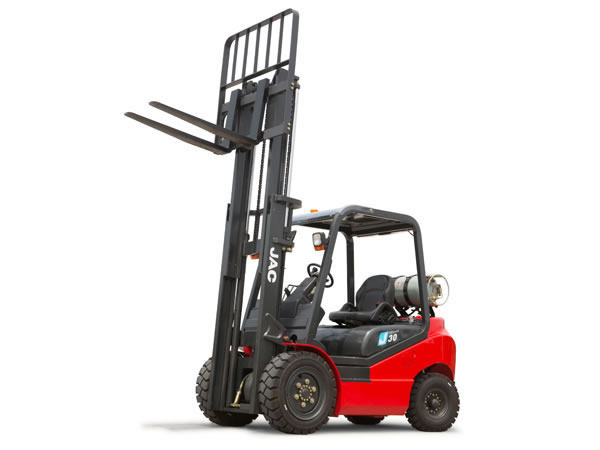

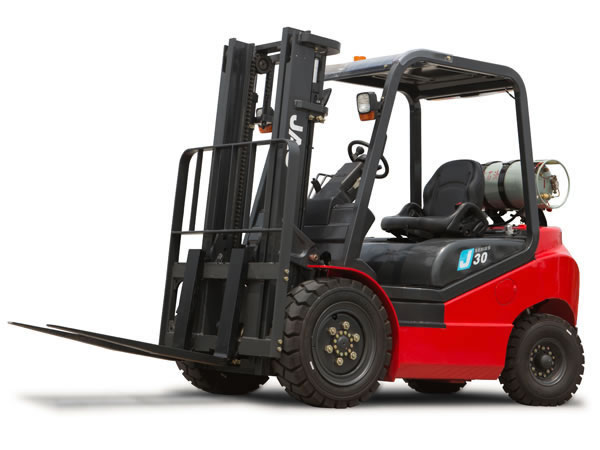

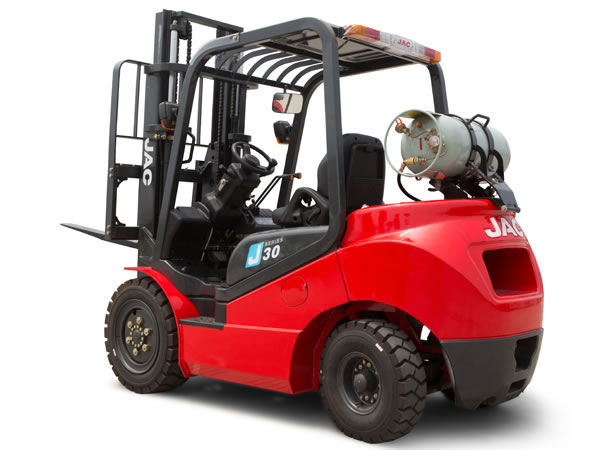

Diesel Forklift

CPCD30J

  • Features
  • Parameter













Model Unit CPCD30J
Power type Diesel
Rated load kg 3000
 Load center distance mm 500
 Lift height mm 3000
Free lift height mm 155
Fork size
L×W×T
mm 1070×125×45
 Minimum turning radius mm 2500
Maximum travel speed /Full load km/h 19
Maximum travel speed/ No load km/h 19.5
Fork height at maximum lift (with backrest) mm 4230
 Standard Mast height mm 2065
 Front wheel 28×9-15-14PR
 Rear wheel 6.50-10-10PR
 Wheelbase mm 1700
 Front wheel/rear wheel mm 1000/970
 Self weight/Without load Kg 4300
 Battery/ Voltage/capacity V/Ah 12/80
Engine/ Model AK-C240PKJ-30
Engine/Rated output kw/r.p.m 34.336.5/2500
Engine/ Rated torque Nm/r.p.m 137.7/1800
Tire type (FR/RR)  Pneumatic
Number of wheels (FR/RR) 2/2
