JAC Heavy-Duty - Products - Electric Forklift

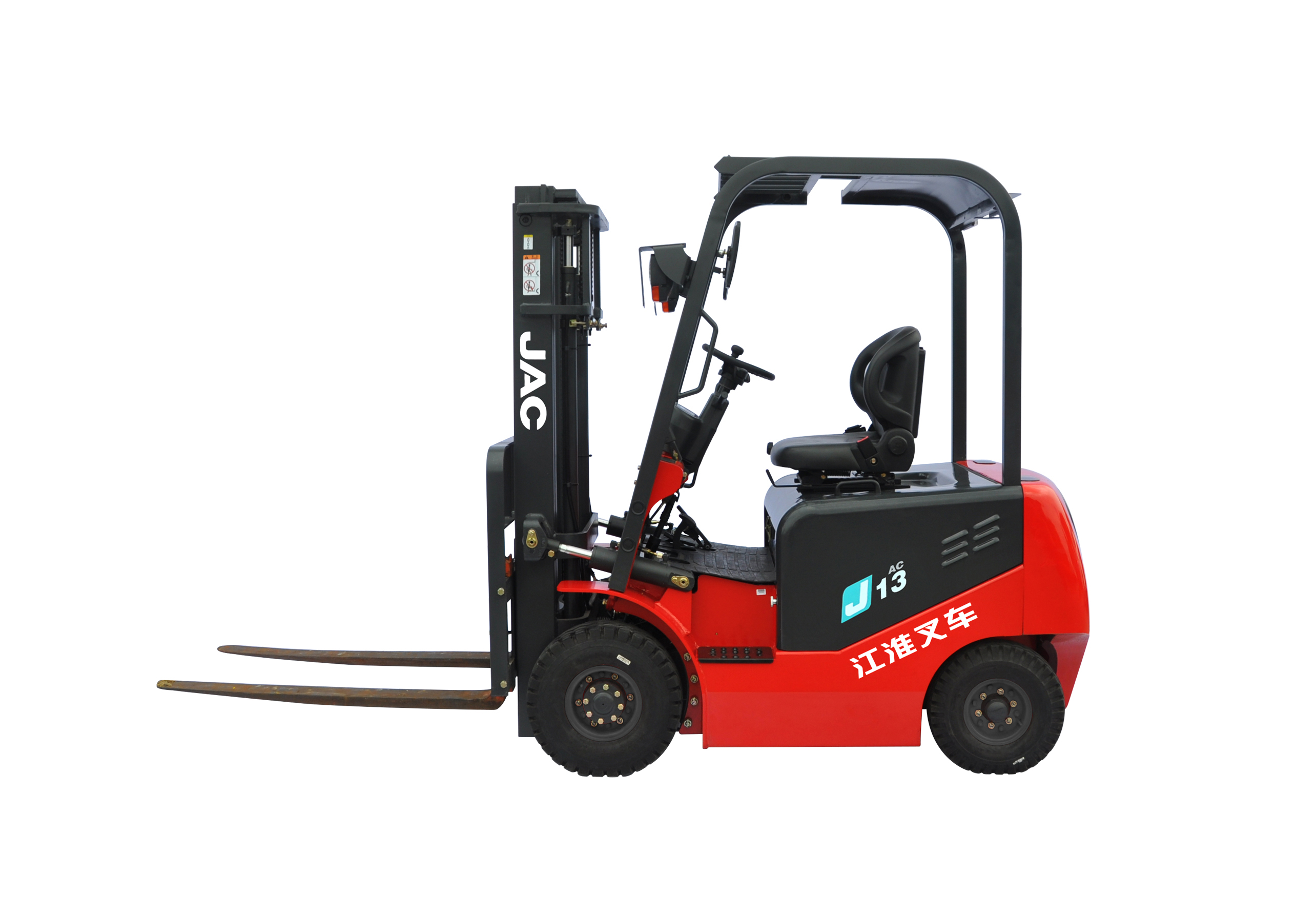

Electric Forklift

Model	Unit	CPD13J
Powe type		Battery
Rated load	kg	1300
Load center distance	mm	500
Lift height	mm	3000
Fork size	mm	1070×122×40
Minimum turning radius	mm	1990
Maximum travel speed/Full load	km/h	12
Maximum travel speed/No load		13
Fork height at maximum lift (with backrest)	mm	3930
Standard Mast height	mm	1990
Front wheel		6.00-9-10PR
Rear wheel		5.00-8-10PR
Tread Front wheel/rear wheel	mm	894/920
Self weight Without load	kg	2840
Battery Voltage/capacity	V/Ah	48/400
Motor/Traveling	KW	8









Maximum travel speed/No load		13
Fork height at maximum lift (with backrest)	mm	3930
Standard Mast height	mm	1990
Front wheel		6.00-9-10PR
Rear wheel		5.00-8-10PR
Tread Front wheel/rear wheel	mm	894/920
Self weight Without load	kg	2840
Battery Voltage/capacity	V/Ah	48/400
Motor/Traveling	KW	8
