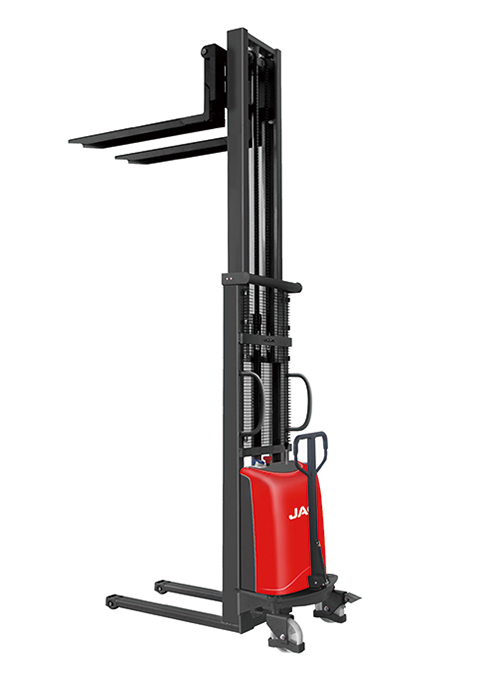

Electric Pallet Truck & Electric Stacker

Characteristics	1.1	Model		CDD10B
	1.2	Power unit		Semi-electric
	1.3	Operation		Hand
	1.4	Rated traction weight	kg	1000
	1.5	Load center distance	mm	450
	1.6	Axle centre to fork face	mm	705			700
	1.7	Wheel base	mm	1190
	1.8	Service Weight	kg	315	365	374	380	405
Wheels/Tyres	3.1	Tires		Polyurethane
	3.2	Driving wheel size/number	Φ×w(mm)	Φ180×50
	3.3	Front wheel size/number	Φ×w(mm)	Φ74×70
	3.4	Balance wheel size/number	Φ×w(mm)	Φ180×50
	3.5	Wheels, number front/rear (x = driven)		1，1/,2
	3.6	Drive end	mm	648
	3.7	Track width	mm	390/490
Dimensions	4.1	Lowered mast height	mm	2077	1577	1827	2077	2327
	4.2	Lifting height	mm	1600	2000	2500	3000	3500
	4.3	The max. lifting height	mm	2077	2567	3067	3567	4067
	4.4	Load capacity on Max. height	kg	1000	800	700	600	500
	4.5	Lowered fork height	mm	85
	4.6	Overalllength	mm	1600/1800
	4.7	Length to fork face	mm	700
	4.8	Overall width	mm	760/964
	4.9	Fork dimensions	s/e/l (mm)	60/150/900（1100）
	4.10	Width of forks	mm	550/640
	4.11	Min.Ground clearance	mm	32
	4.12	Aisle width with pallet 1000 x 1200 across forks	mm	2250
	4.13	Aisle width with pallet 800 x 1200 along forks	mm	2240
	4.14	Min.Turning radius	mm	1350
Performance	5.1	Lifting speed, with/without load	mm/s	80/145
	5.2	Lowering speed, with/without load	mm/s	90/100
	5.3	Service brake		Mechanical
Drive	6.1	Lift motor rating at S3 15%	kW	1.6
	6.2	Battery voltage/rated capacity	V/Ah	12/120
	6.3	Battery weight (± 5%)	kg	36
Others	7.1	Noise level at operator‘s ear	dB(A)	≤70
